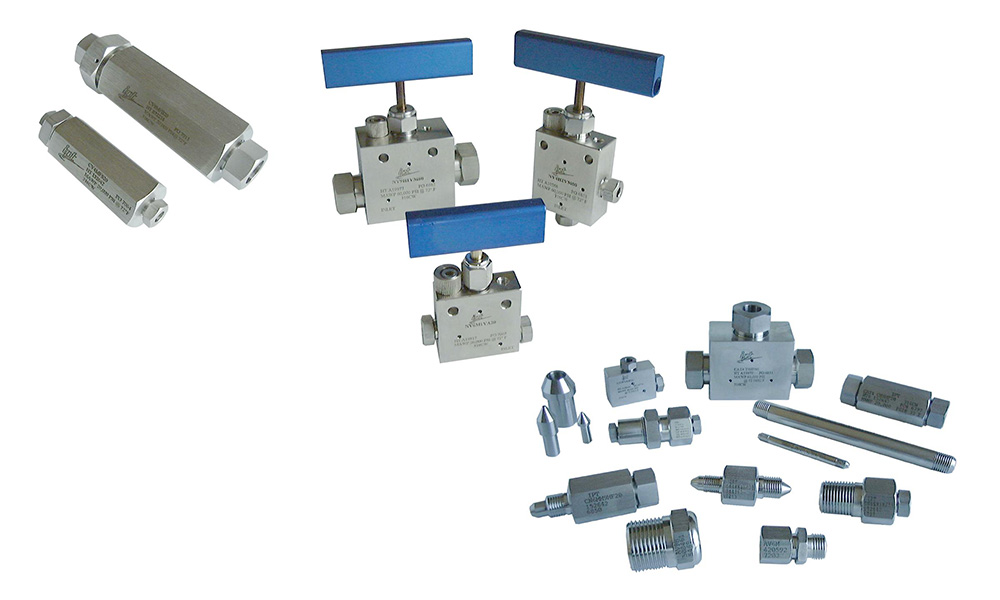

Instrumentation Valves and Fittings
Instrumentation Valves And Fittings
Instrumentation Double Ferrule Tube Fitting
Compression tube fittings specifically designed and manufactured for the use on instrumentation process application and control system. The equipment employed in chemical, petroleum, nuclear power generation and pulp and paper plants. Such tube fitting has found extensive application in other field where a very high quality tube fitting is required.
Our fittings superior design, rigid manufacturing tolerances and strict quality assurance programs produce an all-metal leak free sealing and holding device comparable to major global players, when properly installed.
Consist of a body, a nut, front ferrule and back ferrule, the straight fittings are machined from solid bar stock and for shaped bodies (elbow, tee and cross) are manufactured through forging with special restricted requirement.
Features
- Available in size: 1/16” to 2”, and 2mm to 50mm
- Rolled thread construction
- Available in wide variety of configurations
- Excellent vibration resistance
- Excellent leak-roof sealing
- Gaugeability and retightening
- Stainless Steel, Brass, Carbon Steel, Alloy 400
Instrumentation Pipe Fittings
The pipe fittings are manufactured from bar-stock or forging materials conforming to ASME/ASTM specifications. Pipe fittings threads meet or exceed requirements of ANSI B1.20 and MIL-P-7105 B for tapered threads to ensure reliable make-up of pipe connections.
Features
- Size range from 1/8” to 2”
- Stainless Steel and Carbon Steel
- NPT, ISO/BSP, and SAE Threads
- Rolled male threads protected with cap
Instrumentation Valves And Manifolds
Our complete range of valves and manifolds offers solutions to many industry users. Ball valves are made from one-piece hexagon body for maximum structural strength. Manifolds provide easy block, bleed and calibration of static pressure transmitter or gauge. Needle valves pressure ranging from 3,000psi to 10,000psi, covering most core instrumentation applications.
